If your top leaves look great but the lower canopy lags, you don’t have a spectrum problem—you likely have a distance and uniformity problem. This guide shows exactly how to set, verify, and adjust LED grow light distance so photons reach deep into the canopy, tier after tier, without cooking the tops or starving the edges. We’ll tie every recommendation to PPFD/DLI targets, walk through vertical rack constraints, and leave you with a practical workflow you can copy tomorrow.

Light distance is one key part of vertical farm lighting design, but it should be considered together with PPFD, DLI, fixture layout, crop type, and operating cost. For the full system-level overview, visit our vertical LED grow lights guide for commercial vertical farming.

Why Canopy Penetration Matters in Vertical Farming

What Is Canopy Penetration in Plant Lighting

Canopy penetration describes how effectively photosynthetically active radiation (PAR) travels from your fixtures into and through the foliage—not only across the top plane, but also to mid and lower leaves. In multi-layer systems, short mounting distances, dense spacing, and rack hardware can all block or concentrate light. Strong penetration gives you uniform photosynthesis, consistent morphology, and tighter harvest windows across an entire tier.

Why Light Penetration Determines Plant Growth Quality

When light reaches only the top surface, plants may stretch below, leaves yellow early, and yield skews toward the center. Balanced penetration supports:

• More uniform PPFD over the canopy plane, which stabilizes growth rate and plant form.
• Adequate light for lower leaves, which helps carbohydrate supply and overall vigor.
• Predictable timing for harvest, reducing labor inefficiency and culls.

Daily Light Integral (DLI) is a powerful planning metric here: it converts instantaneous PPFD and photoperiod into total daily photons. For a quick refresher, DLI (mol·m⁻²·day⁻¹) ≈ PPFD (µmol·m⁻²·s⁻¹) × hours × 0.0036. University resources such as Michigan State University’s floriculture lighting series explain how growers translate PPFD to DLI targets for crops and stages; see the overview by MSU’s Erik Runkle in the floriculture lighting resources under “Lighting” for more context: Greenhouse floriculture lighting resources (MSU).

Common Lighting Problems in Vertical Farming Systems

• Hotspots under fixtures and shadows at edges/corners
• Inconsistent inter-tier spacing that forces emergency dimming or re-hanging
• Over-illumination close to bars (photobleaching) while edges lag below target
• Ignoring plant height changes, so the canopy “grows into” the light and PPFD spikes

Before deciding the mounting distance, make sure the fixture type is suitable for your growing system. If you are still comparing bar lights, panels, spectrum options, or commercial specifications, start with our guide on how to choose the best indoor grow lights.

How Grow Light Distance Affects Plant Growth

What Is LED Grow Light Distance

LED grow light distance is the physical gap between the light-emitting surface and the canopy plane. In practice, distance and dimming work together to set average PPFD and shape spatial uniformity. In vertical racks, you often have only 6–16 inches of clearance to work with—so precision matters.

How Light Intensity Changes With Distance

With a compact source, intensity drops roughly with the square of distance. Bar-style LEDs are extended sources: as you move them closer, their beams overlap more, which can improve uniformity but also raises peak PPFD near the bars. That’s why close mounting usually requires coordinated dimming and careful mapping.

For DLI planning, North Carolina State University’s extension explains how to convert DLI targets to PPFD setpoints across different photoperiods: see the accessible primer in Understanding DLI (NC State Extension). For terminology and best practices in plant lighting, IES’s recommended practice provides a rigorous foundation: IES RP-45-21: Lighting for Plant Growth and Development.

Why Grow Light Distance From Plant Matters

Set too far and you’ll see stretch, slow development, and wide center-to-edge yield gaps. Set too close and you invite photobleaching, leaf edge curl, and overheating near bar centerlines. The sweet spot delivers target PPFD uniformly, maintains safe leaf temperatures, and hits the day’s DLI with minimal wasted energy.

How Far Should Grow Lights Be From Plants?

General Grow Light Distance Guidelines

These are starting points—always confirm with a PAR meter and adjust with dimming and distance:

• Seedlings: 12–24 inches to hit about 100–300 µmol·m⁻²·s⁻¹
• Vegetative: 12–18 inches to hit about 300–600 µmol·m⁻²·s⁻¹
• Flowering/Fruiting: 8–16 inches to hit about 700–1000+ µmol·m⁻²·s⁻¹

The right value depends on your fixture’s output and optical spread, canopy density, and desired DLI.

How Far Away Should Grow Lights Be From Plants in Indoor Farms

In single-level indoor rooms you often have more freedom to raise lights and dim to the target. In vertical farms the range compresses because tiers are fixed. Expect most tiers to operate between 6 and 16 inches from the canopy. Start toward the higher end of your available clearance (e.g., 12–14 inches in a 16-inch bay), set dimming to reach your PPFD target, then optimize from there.

Factors That Influence Lighting Distance

• Fixture intensity and distribution (total PPF, bar count, bar spacing)
• Plant species and stage (leafy greens vs. fruiting crops; seedling vs. flowering)
• Canopy density and leaf angle (dense, overlapping leaves need more careful overlap)
• Layout and edge effects (aisles, side curtains, reflective materials)
• Thermal management and airflow (leaf temperature can diverge from air temperature at close mount)

Mounting height should be planned together with rack geometry and fixture spacing. For a more complete view of how lights should be arranged across stacked shelves, read the multi-tier lighting layout guide for vertical farms.

LED Grow Light Distance for Different Growth Stages

Light Distance for Seedlings

Seedlings generally target about 100–300 µmol·m⁻²·s⁻¹ PPFD. A safe starting distance is 12–24 inches for common bar-style LEDs, then tune by meter. Watch for signs:

• Too close: bleaching/paling at tops, canoeing, dry-down too rapid
• Too far: thin stems, stretching, slow root establishment

To plan by DLI, University of Florida IFAS provides clear guidance on using DLI in production planning: see the practical introduction in DLI for greenhouse growers (UF/IFAS EDIS). For example, if you target a DLI of 10–14 mol·m⁻²·day⁻¹ over 16 hours, average PPFD should land around 175–240 µmol·m⁻²·s⁻¹.

Grow Light Distance for Vegetative Growth

Aim for roughly 300–600 µmol·m⁻²·s⁻¹ PPFD. In vertical tiers, that often means 10–16 inches with dimming control and good bar overlap. Uniformity is your friend here; a minimum-to-average ratio around 0.7 or better is a practical target in many operations. The DesignLights Consortium’s horticultural program details how the industry measures and reports performance, which helps you compare fixtures and plan mapping: DLC horticultural technical requirements.

Lighting Distance for Flowering Plants

Fruiting and flowering crops commonly need higher PPFD (700–1000+ µmol·m⁻²·s⁻¹), but uniformity and leaf temperature control are non-negotiable. Expect 8–16 inches in vertical racks with more aggressive dimming and frequent re-mapping as the canopy rises.

LED Grow Light Distance in Vertical Farming Systems

Challenges of Lighting in Multi-Layer Farms

• Short clearance (6–16 inches) limits distance-based control, so dimming and distribution must pick up the slack.
• Structural shading from rails, ducts, and hardware creates persistent edge losses.
• Heat and humidity can stratify by tier; leaf temperatures may run higher near close-mounted bars.

How Close Should LED Grow Lights Be to the Canopy

Close enough to achieve target PPFD with uniform overlap, but not so close that bar centerlines overheat leaves. Practically, begin near the maximum workable distance within the bay—say 12–14 inches if the bay is 16 inches—dial your PPFD with dimming, then step down only if you need to lift edges.

Optimizing Grow Light Distance in Rack Systems

• Close-clearance racks (net 6–12 inches; 4–8 bar arrays; 600–800 W per tier): Start at 10–12 inches if you can, set PPFD with dimming, then lower gradually while watching for hotspots under bars. Improve overlap by small bar-spacing adjustments where possible.
• Mid-clearance racks (8–16 inches; 320–500 W per tier; high-density layouts): Start near 12–14 inches and tune dimming. If corners lag, consider perimeter fills or reflective side curtains before dropping too low.
• Greenhouse toplight + interlighting hybrids: Use toplights to meet bulk DLI and interlighting to deliver photons into the fruiting zone without blasting the top. Wageningen UR and other research groups document how interlighting lifts production by improving within-canopy distribution; see this overview of lighting research themes: WUR greenhouse lighting and interlighting overview.

Common Mistakes When Setting Grow Light Distance

Lights Placed Too Far From Plants

Symptoms: stretching, uneven canopy height, pale foliage, slow time-to-harvest, big center-to-edge yield spread. Fixes: lower fixtures within safe limits, increase dimming, lengthen photoperiod to meet DLI, and add reflective side curtains to rescue edges.

Lights Placed Too Close to the Canopy

Symptoms: photobleaching under bars, leaf edge curl or canoeing, high leaf temperatures, substrate drying too fast. Fixes: raise fixtures if possible, reduce dimming, increase airflow across the canopy, and shorten photoperiod if daily photons overshoot.

Ignoring Canopy Growth and Plant Height

If you set distance once and walk away, fast-growing canopies will quickly run too close to the bars. Build re-hangs and dimming checks into your weekly SOPs, especially during rapid vegetative growth.

Practical Tips to Improve Canopy Penetration

Adjust Lighting Height Regularly

Set a recurring task to check tier-by-tier distances and dimming. As canopies rise, either lift fixtures (if structure allows) or reduce dimming to hold target PPFD. Re-map weekly in fast growth phases.

Use Even Light Distribution Across the Canopy

Bar-style arrays excel at creating overlapping beams that smooth hotspots. If your edges or corners lag, adjust bar spacing, add narrow perimeter fills, or install reflective side curtains. Track improvement with a simple min:avg uniformity calculation after each change.

Correct distance helps improve light distribution, but the final goal is uniform plant-usable light at canopy level. To reduce hot spots and weak zones, review our guide on how to achieve consistent PPFD across every growing layer.

Combine Proper Distance With Uniform Lighting

Think of distance as the coarse control and distribution as the fine control. Get within your target PPFD using distance and dimming; then focus on uniformity using fixture layout, overlap, and edge management. Vendor-agnostic bar arrays designed for rack use are common in vertical farms; for example, solutions from companies like FY LIGHTING provide bar-style hardware that supports close-mount uniformity without forcing extreme distances.

Monitor Plant Response and Adjust Lighting

Plants tell the truth. If leaves near bar centerlines pale while edges look normal, back off or dim. If stems stretch and leaf angles chase the light, close the gap or raise the dimmer. Keep a log with three numbers per tier: average PPFD, min:avg ratio, and leaf temperature at mid-canopy.

Recommended Grow Light Distance Chart

The ranges below are starting points. Always verify with a PAR meter and adjust for fixture output, distribution, and crop specifics. Tie choices to PPFD and DLI, not distance alone.

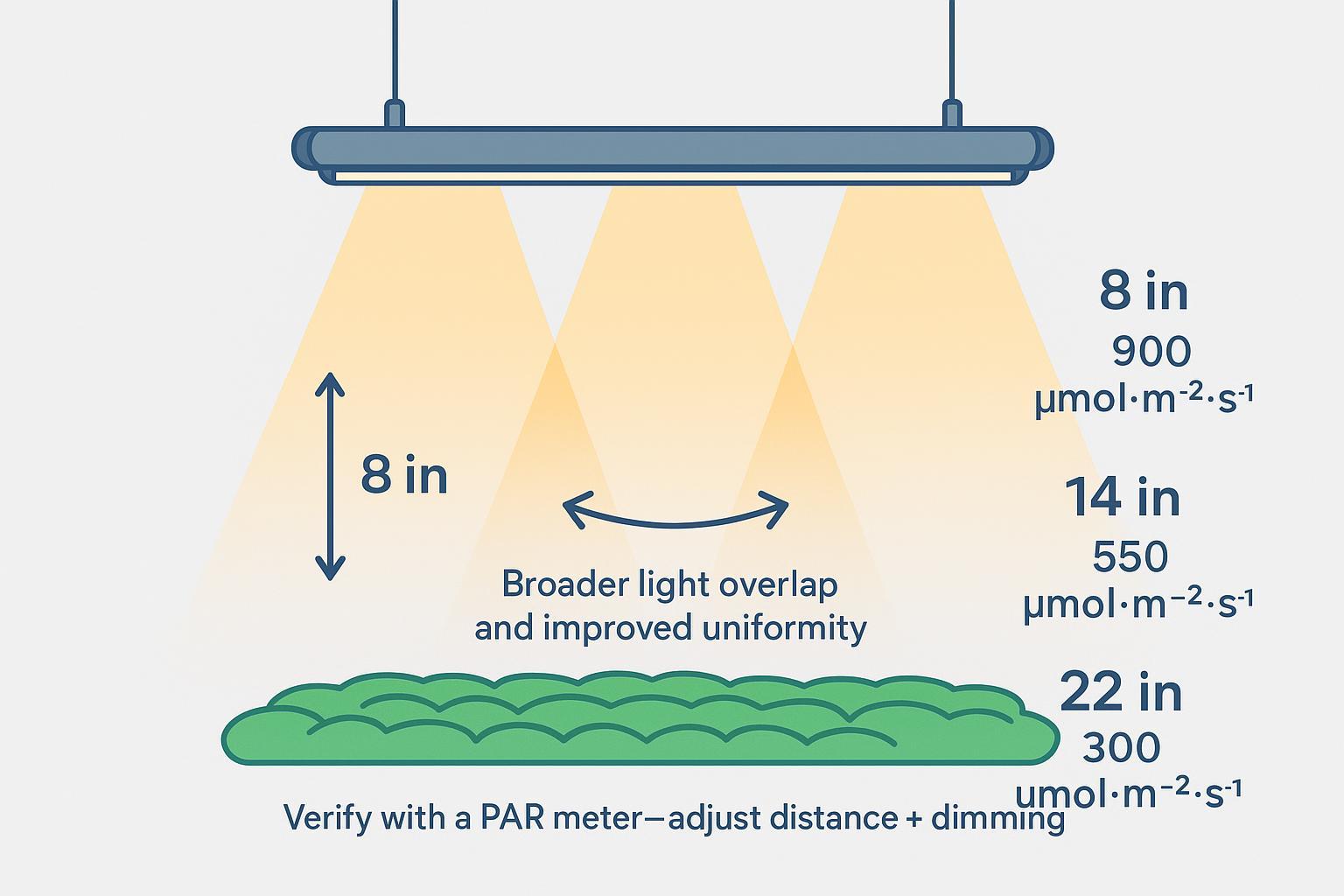

Caption: Closer bars can improve overlap and uniformity, but verify with a PAR meter and coordinate dimming.

Measuring and Mapping: A 30-Minute Calibration Workflow

Set targets

Choose PPFD targets by stage (e.g., seedlings 150–250; veg 300–600; flowering 700–900+ as applicable). Convert DLI goals to PPFD given your photoperiod using the NC State and UF/IFAS methods linked earlier.

Mount and dim

Start near the maximum workable distance within the bay (e.g., 12–14 inches in a 16-inch bay). Set dimming to approach your target PPFD at canopy.

Map PPFD

Make a grid across the tier (e.g., 6×6). Measure PPFD at canopy height at each point. Compute average, minimum, maximum, and min:avg (minimum divided by average). Aim for a practical min:avg threshold near 0.7 or better when feasible for production quality.

Iterate

If hotspots: slightly increase distance or reduce dimming; if edges lag, consider reflective curtains or modestly closer mounting while watching for bar-line hotspots.

Lock, log, and monitor

Record final distance, dimming percent, average PPFD, min:avg, and mid-canopy leaf temperature. Re-check weekly or whenever crop height changes materially.

For lighting terminology and measurement expectations in horticulture, the IES recommended practice is a useful reference point: IES RP-45-21 landing page. For DLI targets by crop category, see practical extension guides such as Understanding DLI (NC State Extension) and UF/IFAS EDIS DLI overview.

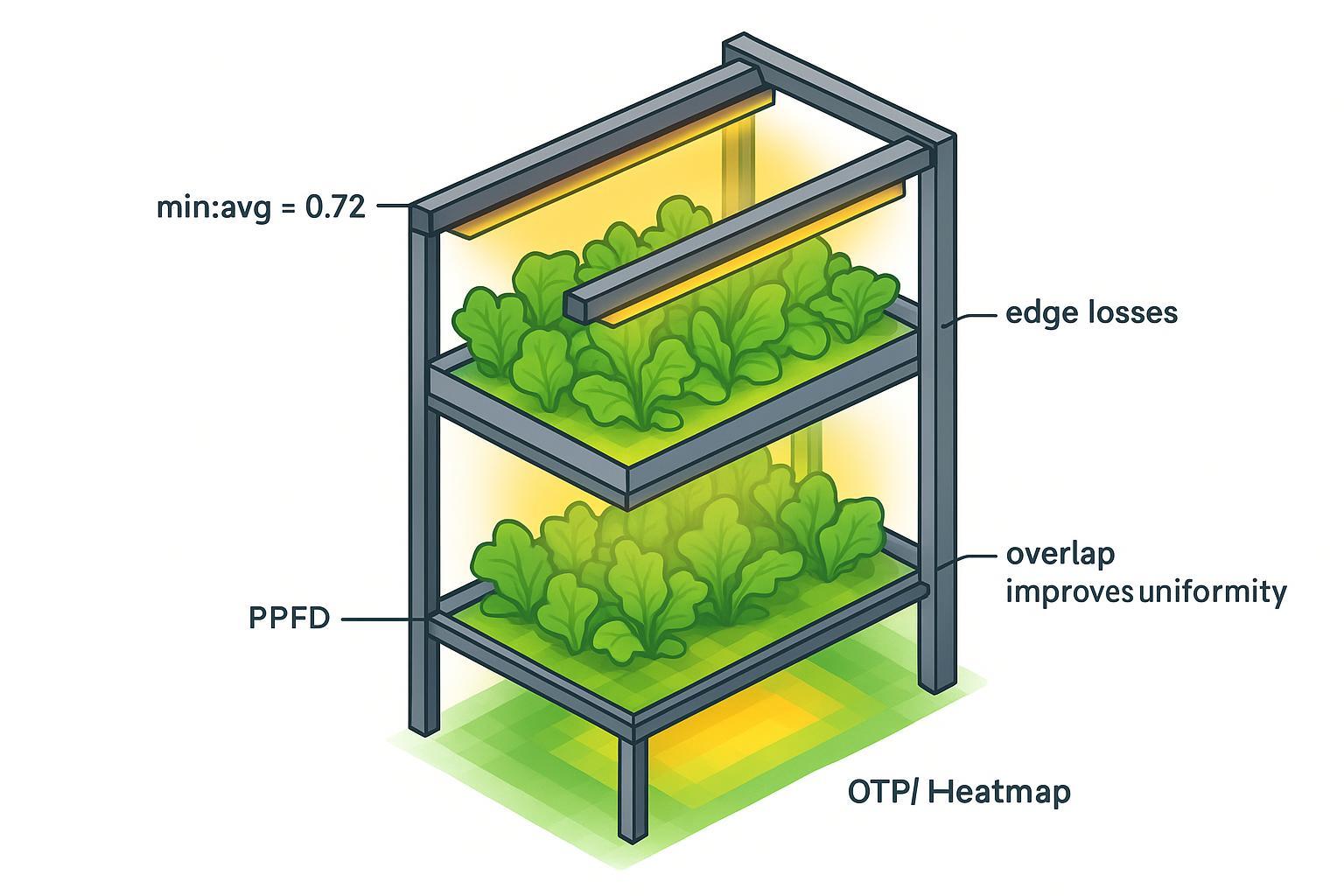

Caption: Example PPFD heatmap showing edge losses and a min:avg around 0.72. Use reflective side curtains and bar spacing to lift low zones.

Seedlings: A Visual Starting Point

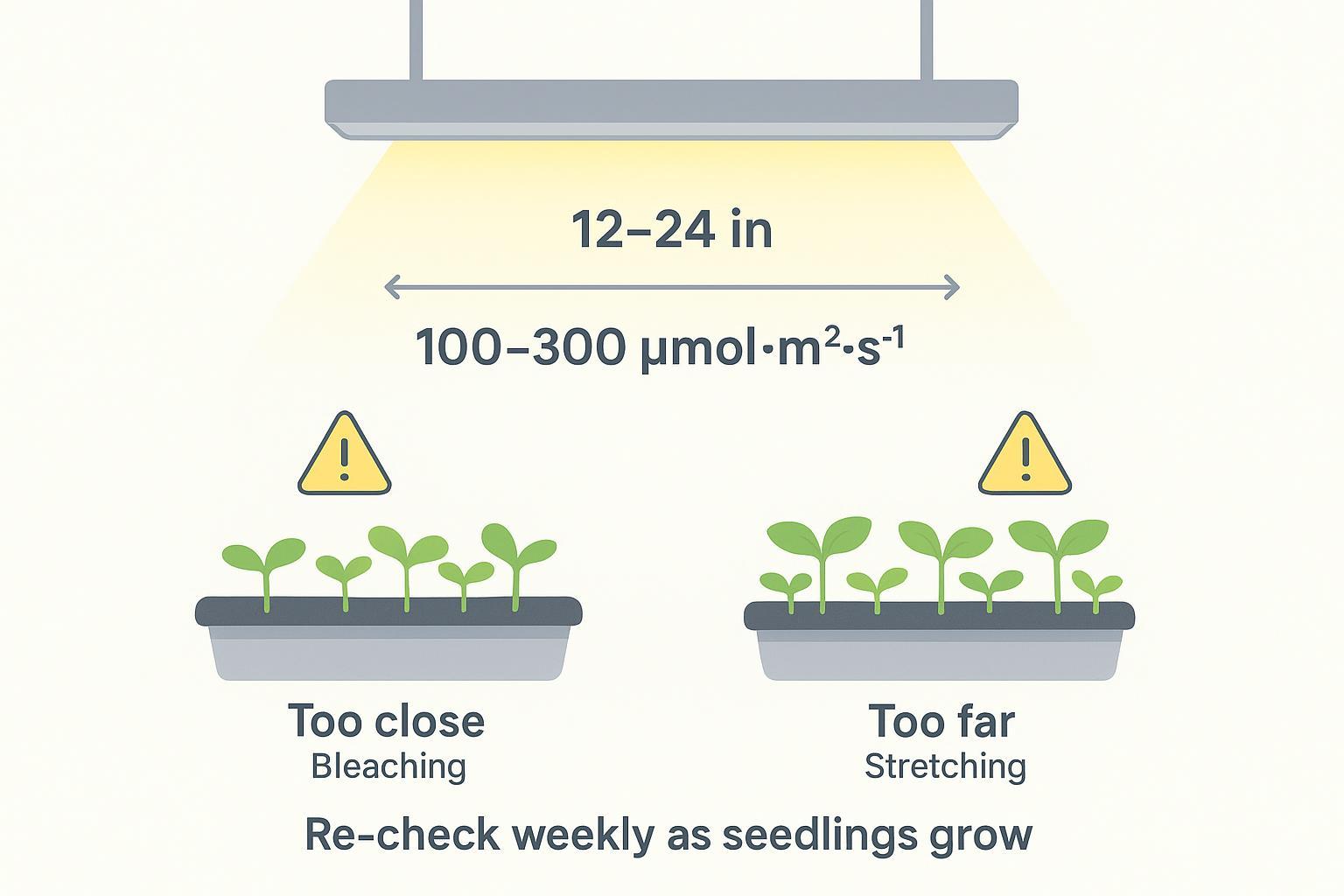

Caption: Start seedlings at 12–24 inches to target ~100–300 µmol·m⁻²·s⁻¹. Re-check weekly as height and leaf area increase.

Conclusion: Optimizing Grow Light Distance for Better Crop Performance

Why Lighting Distance Is Critical for Indoor Farming

Distance sets the stage for PPFD and uniformity. In vertical farms, where inches are precious, coordinated control of hanging height and dimming defines whether photons are evenly delivered or wasted in hotspots.

How Proper Grow Light Distance Improves Canopy Penetration

When you anchor distance to PPFD/DLI targets and verify with mapping, you get deeper light into the canopy, steadier morphology, and tighter harvest timing. Think of it this way: distance is the steering wheel and uniformity is the suspension—use both to keep the whole canopy on track.

FAQ

Q: How far should LED grow lights be from plants?

A: Use distance as a starting point, but tune by PPFD. Typical ranges: seedlings 12–24 in (~100–300 PPFD), vegetative 12–18 in (~300–600 PPFD), flowering/fruiting 8–16 in (~700–1000+ PPFD). Verify with a PAR meter and adjust dimming.

Q: What is the ideal LED grow light distance for seedlings?

A: Start 12–24 inches and target 100–300 µmol·m⁻²·s⁻¹. Watch for stretch (too far) or bleaching/canoeing (too close) and adjust.

Q: How far away should grow lights be from cannabis seedlings?

A: Often near 16–20 inches to reach roughly 150–250 µmol·m⁻²·s⁻¹, then fine-tune by meter and plant response.

Q: Does grow light distance affect plant growth?

A: Yes—distance controls PPFD and shapes uniformity. Too close causes stress and bleaching; too far causes stretch and slow development. Use DLI/PPFD to set targets.

Q: How does lighting distance influence canopy penetration?

A: Closer bar arrays can improve beam overlap and reduce shadowing, but they raise peak PPFD near bars. Coordinate distance with dimming and verify uniformity by mapping.

Q: What happens if grow lights are too close to plants?

A: Expect photobleaching, leaf curl, high leaf temperatures, and faster dry-down. Raise fixtures, dim, and improve airflow.

Q: What happens if grow lights are too far from plants?

A: Expect stretch, pale foliage, slow growth, and edge under-performance. Lower fixtures, increase dimming, lengthen photoperiod, and improve reflectance.

Q: What grow light distance is best for vertical farming systems?

A: Most tiers operate between 6 and 16 inches depending on fixture output and layout. Start toward the higher end of your clearance, set PPFD with dimming, then optimize uniformity.

Q: How can growers adjust grow light distance as plants grow?

A: Re-map weekly during fast growth, lift fixtures where possible, or reduce dimming to hold PPFD. Keep a log of distance, dimming, average PPFD, min:avg, and leaf temperature.

Q: Do stronger grow lights require greater distance from plants?

A: Usually, unless you dim them or distribute output across more bars for better overlap. Always verify with a meter.

Sources and further reading

• DLI primer and crop-planning context: Understanding DLI (NC State Extension)
• Practical DLI planning for growers: UF/IFAS EDIS: Daily Light Integral overview
• Industry measurement and reporting framework: DesignLights Consortium horticultural technical requirements
• Recommended practice and terminology: IES RP-45-21: Lighting for Plant Growth and Development
• Background on floriculture lighting education: MSU Floriculture lighting resources

Continue Learning About Vertical Farm

After confirming the proper grow light distance, you can estimate how many fixtures are needed for each shelf or growing zone. This vertical farm grow light calculation guide explains how to calculate fixture quantity more systematically.
