Dense plant canopies are great at capturing light—and just as good at blocking it. If your rooms show beautiful top colas but weak lower growth, the culprit is often shadows and uneven PPFD, not a lack of raw power. Here’s the deal: when you spread photons across a larger emitting area and create overlap from multiple angles, more of the canopy gets usable light. The result is steadier photosynthesis, tighter harvest windows, and often better yield than simply chasing a higher peak from a single high ppfd led grow light.

The Shadow Problem in Indoor Farming

Uneven lighting is one of the biggest performance bottlenecks in controlled environments. Whether you run multi-tier vertical racks, a single-tier room/tent, or greenhouse supplemental lines, geometry and self-shading dictate how much of your expensive photon budget actually reaches productive leaves.

Why Dense Plant Canopies Create Light Blockage

Leaves overlap, stems branch, and flowers cluster. That structure creates occlusion: upper leaves intercept a disproportionate share of photons while lower leaves fall into shade. Compact point sources, hung close, exaggerate this by projecting steep angles that amplify shadow contrast.

How Shadows Reduce Photosynthesis Efficiency

Photosynthesis is a canopy-level game. If 20–30% of the canopy runs below target PPFD, net assimilation drops even if the center hotspot is blazing. Reviews in greenhouse horticulture show that using diffused or redistributed light reduces hotspot/low-light contrast and improves light-use efficiency at the canopy scale, because more leaves operate in their efficient range rather than in either saturation or starvation. See the 2025 synthesis on light manipulation and diffusive covers in greenhouse crops for mechanistic and empirical context in which more uniform distribution improved performance in multiple trials according to the peer-reviewed overview in Frontiers in Plant Science (2025): uniform, multi-angle light raises the share of leaves at productive intensities. Reference: Advances in light manipulation in greenhouse horticulture — Frontiers in Plant Science (2025).

According to the peer-reviewed review on greenhouse light manipulation, diffusive glazing reduced hotspots, increased within-canopy PPFD, and improved photosynthetic efficiency and growth outcomes in several species when compared to clear covers. Source: Advances in light manipulation in greenhouse horticulture — Frontiers in Plant Science (2025): https://www.frontiersin.org/journals/plant-science/articles/10.3389/fpls.2025.1640530/full

Why Uneven Light Causes Inconsistent Crop Growth

Spatial PPFD variability drives variable internode length, bud set, and secondary growth. In practice, you see uneven maturation and more pruning/waste. When you reduce that variability, plant development evens out, making irrigation, fertigation, and labor planning more predictable.

What Does PPFD Stand for in Plant Lighting?

PPFD stands for Photosynthetic Photon Flux Density—the number of photosynthetically active photons (400–700 nm) reaching a plant surface each second, expressed in µmol/m²/s. Growers use PPFD to set fixture height, spacing, and dimming so the canopy receives enough light for photosynthesis without hotspots or waste.

• For an extension-backed definition and practical context, see Missouri Extension’s guide to grow lights: Understanding Grow Lights (PPFD/DLI, 2020s): https://extension.missouri.edu/sites/default/files/legacy_media/wysiwyg/Extensiondata/Pub/pdf/agguides/hort/g06987.pdf

PAR vs PPFD: Understanding Plant Light Measurements

“PAR” describes the spectral band plants use for photosynthesis (400–700 nm). PPFD is a measurement within that band—how many of those photons actually arrive at a point on your canopy. In short: PAR is the “what,” PPFD is the “how much and where.” For measurement fundamentals and sensor behavior, see Apogee Instruments’ quantum sensor documentation: Daily Light Integral Measurement — Apogee Instruments: https://www.apogeeinstruments.com/daily-light-integral-measurement/

How Growers Use a PPFD Meter for LED Grow Lights

A PPFD meter (quantum sensor) lets you map light across benches or tiers. Keep the sensor level at canopy height, measure on a grid (e.g., 1 × 1 ft in 4 × 4–5 × 5 zones), then compute the average and the minimum-to-average (min/avg) uniformity. Practical goal: push min/avg higher over time while meeting stage targets. For best practices and grid mapping examples, see Apogee’s guidance on using a quantum sensor: Determining Grow Light Position Using a PAR Meter — Apogee Instruments: https://www.apogeeinstruments.com/blog/determining-grow-light-position-using-a-par-meter/

Quick protocol: Map a 5 × 5 ft bench at 1-ft spacing (25 points), record PPFD at each point, compute mean and min. If min/avg < ~0.7, consider raising height and/or redistributing fixtures for more overlap, then re-map.

Why High PPFD Grow Lights Alone Cannot Solve the Problem

Buying a single high-output fixture—or pushing a dimmer to 100%—won’t guarantee higher yield. A high ppfd grow lights strategy without distribution control can create hotspots and deep shadows.

The Limitations of Chasing the Highest PPFD Grow Light

• Excessive peak PPFD can saturate upper leaves while lower leaves remain below target.
• Close mounting to “hit the number” often worsens contrast (bright centers, dim edges).
• Heat load and VPD management become harder when you stack power in a small area.

Light Hotspots vs Uniform PPFD Distribution

Two rooms with the same average PPFD can perform differently: the one with better uniformity (higher min/avg) usually delivers more consistent biomass and quality. Peer-reviewed work on redistributing light in greenhouses shows lower spatial variability improves canopy-level photosynthesis by illuminating shaded tissues more effectively. See Consequences of intra-canopy and top LED lighting for greenhouse crops (Frontiers, 2023): https://www.frontiersin.org/journals/plant-science/articles/10.3389/fpls.2023.1012529/full

Why Light Uniformity Matters More Than Peak Intensity

Uniform PPFD lets more leaves operate near their efficient photosynthetic zone. It also stabilizes development across the footprint, which tightens harvest windows and reduces labor variance. In other words, a smart layout can outperform simply adding another high ppfd led grow light at low height.

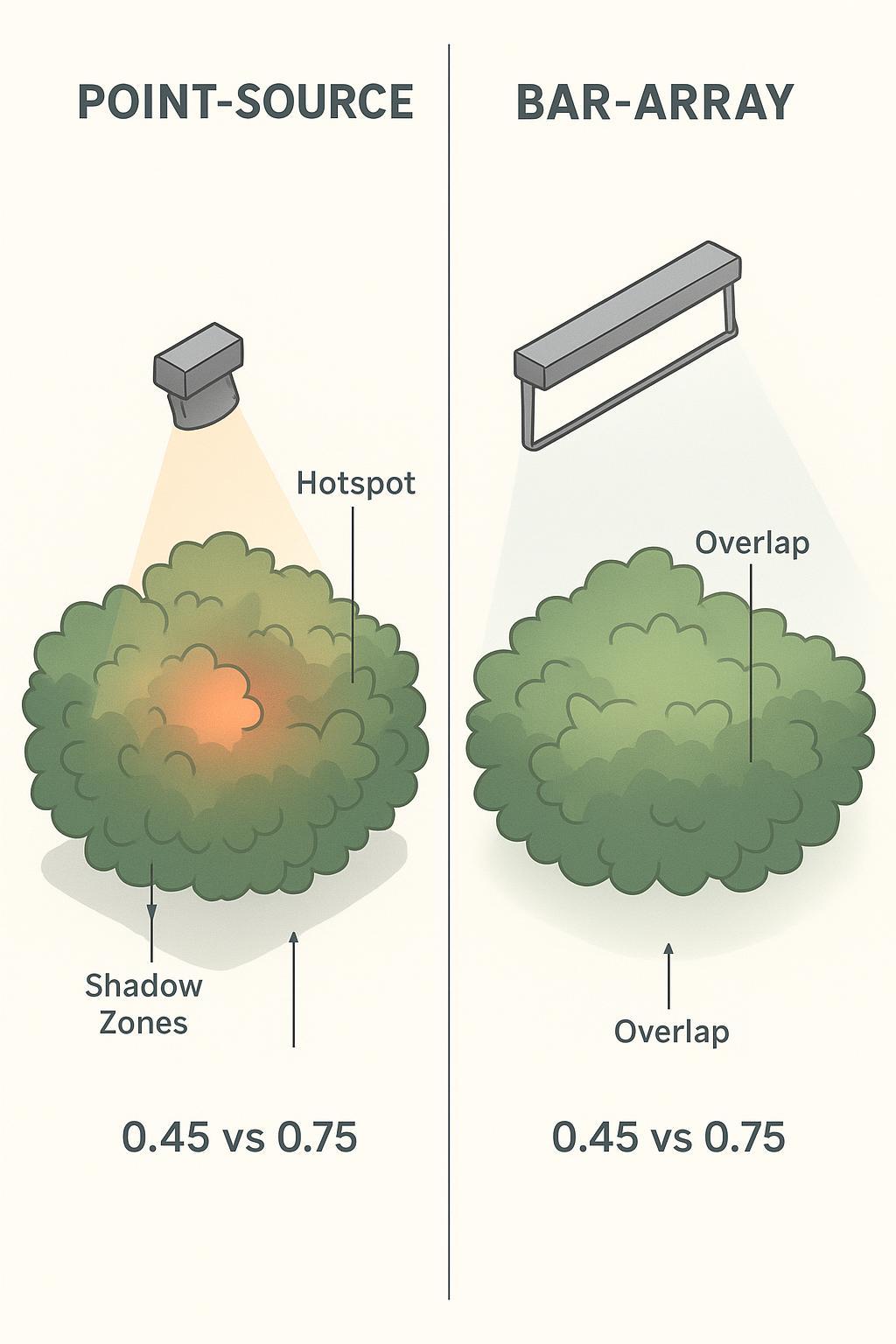

Large-Area Emission and Its Impact on Canopy Penetration

Large-area emission means spreading photons from a wide surface (e.g., multi-bar arrays, distributed luminaires, diffused greenhouse light) so multiple angles reach the plant. When mounted to create overlap, these systems fill in edge deficits and soften shadow lines.

How Large Lighting Surfaces Improve Light Distribution

Wide emitters approximate a Lambertian spread: less concentrated beam, more even angular distribution. Mounting them modestly higher widens footprints and encourages overlap between neighboring fixtures, raising the minimum PPFD without blowing out the peaks.

Reducing Shadow Zones in Dense Plant Canopies

Multiple angles matter. Diffused greenhouse glazing, intra-canopy, and upward lighting all reduce shadow contrast and raise within-canopy PPFD. Reviews have documented improved photosynthetic rates and, in several cases, growth benefits when light is redistributed more evenly compared with direct-beam setups. See the 2025 Frontiers review on greenhouse light manipulation noted earlier for the mechanism and outcomes: Advances in light manipulation in greenhouse horticulture — Frontiers in Plant Science (2025): https://www.frontiersin.org/journals/plant-science/articles/10.3389/fpls.2025.1640530/full

Why Even Light Coverage Improves Plant Development

Even PPFD supports uniform internode length, steadier bud sites, and more predictable maturation. That translates into smoother SOPs: pruning, fertigation, and harvest cadence all get easier when the crop develops evenly across the bench or tier.

Grow Light Distance and Coverage Area

Mounting height is the steering wheel for distribution. Increasing the distance for LED grow light typically widens coverage and improves uniformity—while decreasing peak PPFD. The right balance depends on fixture optics, form factor, and your target averages.

Recommended Distance for LED Grow Light Installation

For many bar-style fixtures in tents/benches, practical starting points hover around 12–18 inches above the canopy, then tune via mapping. In larger rooms, higher mounting encourages multi-fixture overlap and steadier edges. Educational resources illustrate these trade-offs and model-specific ranges:

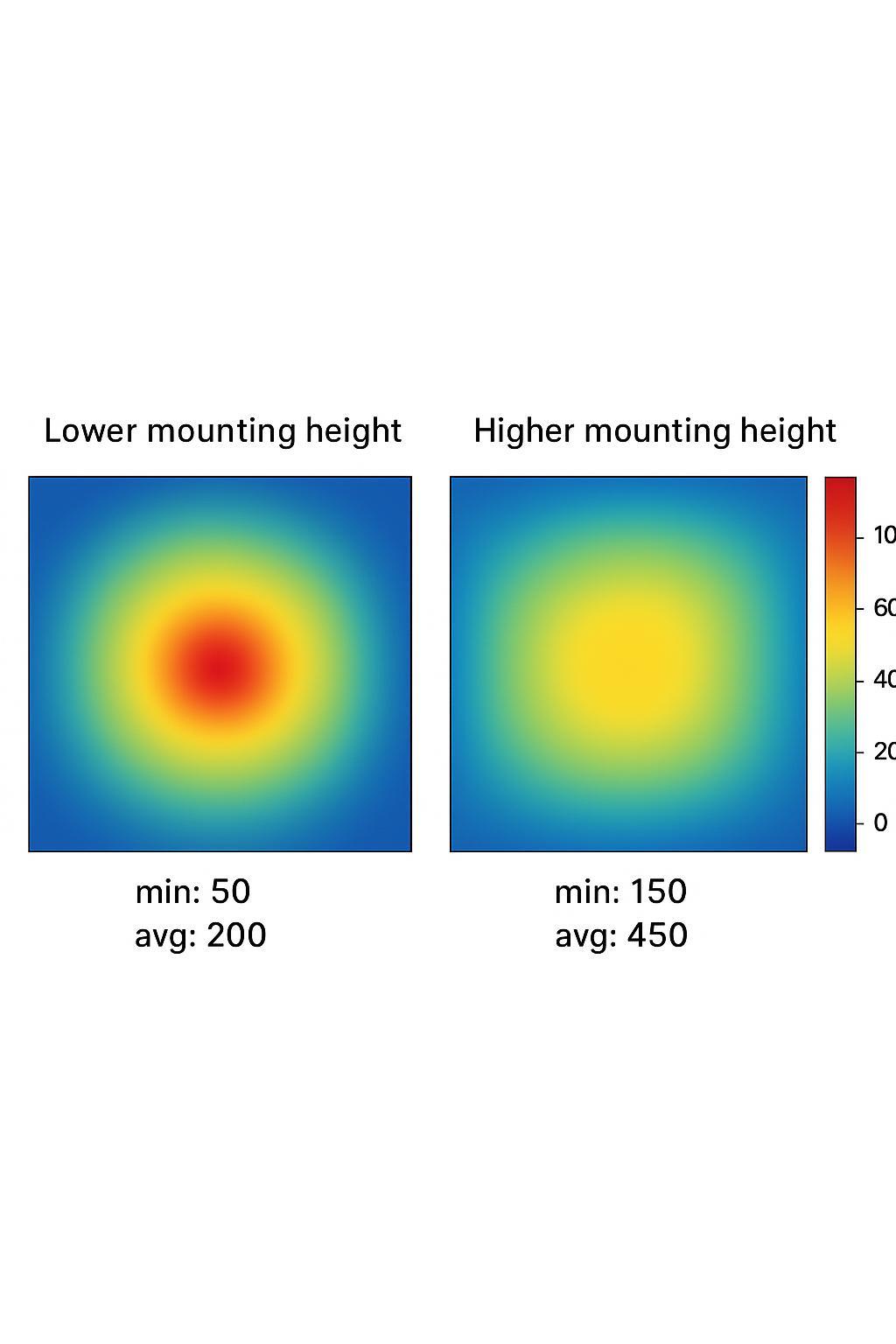

How Mounting Height Changes Light Distribution

• Raise height: broader footprint, higher min/avg, lower peak.
• Lower height: tighter footprint, lower min/avg, higher peak.
• Use trial maps to find the sweet spot where the average PPFD meets your stage target and the min/avg is acceptable for quality and uniformity.

Balancing Coverage Area and Light Intensity

If raising height drops the average too much, consider modestly increasing power or adding fixtures to preserve the average while keeping the improved uniformity. In greenhouses, diffusion films mimic a very large-area emitter that raises within-canopy PPFD without changing total PPF.

How Much Area Can Thousand Watt Grow Lights Cover?

Typical coverage for thousand watt grow lights (modern bar arrays):

• Flowering stage: about 4 × 4 ft to 6 × 6 ft
• Vegetative stage: about 5 × 5 ft to 7 × 7 ft
• Greenhouse supplemental: depends on sunlight and target DLI; validate with in-situ PPFD mapping

A comparable 1000 W-class system from FY LIGHTING:https://www.fytechsystems.com/1000-watt-led-grow-lights/

Large-area emission lighting systems are designed to deliver more uniform light distribution across plant canopies. Instead of concentrating light in a single hotspot, bar-style arrays spread light over a wider footprint, helping reduce shadows and improve PPFD consistency. Providers such as FY LIGHTING supply solutions for balanced canopy illumination in commercial indoor farms and greenhouse environments. For vertical applications, see their Vertical Grow Lighting overview: Vertical Grow Lighting Solutions — Fytech Systems: https://www.fytechsystems.com/vertical-led-grow-lights/

Best PPFD Levels for Different Growth Stages

Below are typical PPFD ranges used by many commercial growers; tune for crop, CO₂, and environment. Extension programs often express targets as DLI; the two are convertible by photoperiod.

• Vegetative stage (best ppfd for veg): about 300–600 µmol/m²/s
• Flowering stage (best ppfd for flowering): about 600–1000 µmol/m²/s
• High-intensity cultivation (with elevated CO₂ and careful heat management): about 1000–1500 µmol/m²/s

DLI perspective: young plants and leafy greens often target ~8–12 mol/m²/day. For a 16-hour day, that’s roughly 139–208 µmol/m²/s on average. See MSU’s indoor lighting guidance with DLI→PPFD conversions: Growing seedlings under LEDs — Michigan State University: https://www.canr.msu.edu/floriculture/uploads/files/Indoor%20lighting%20guide-low.pdf

Tip: If you’re unsure where to start, pick the lower end of the range, map your PPFD, and step up power while watching canopy temperature and leaf response. Elevated CO₂ allows productive use of higher PPFD.

Practical Ways to Improve Canopy Light Distribution

Adjusting Grow Light Distance for Better Coverage

• Raise fixtures slightly to widen the footprint and lift edge PPFD; re-measure.
• If the average falls below target, increase dimmer power modestly or add fixtures to keep the improved min/avg.

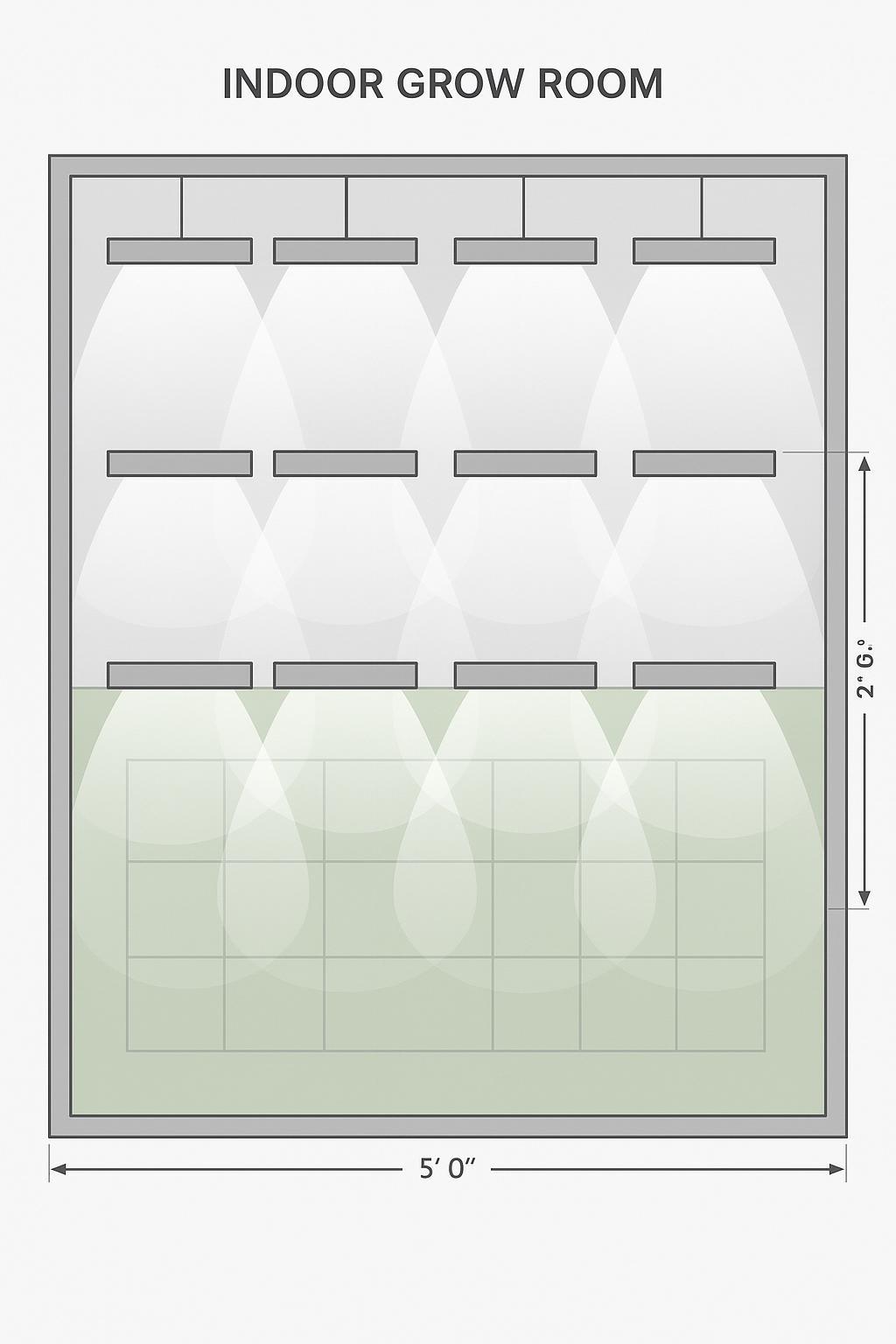

Improving Lighting Layout Across Large Grow Rooms

• Use distributed bar arrays rather than a single compact luminaire per zone.
• Stagger rows to avoid repeating hotspot patterns; aim for footprint overlap across aisles and edges.
• In multi-tier systems, ensure each tier’s mounting height and spacing are mapped independently—small geometry changes compound over tiers. For system context, see: Hydroponic Lighting — The Ultimate Guide (Fytech Systems): https://www.fytechsystems.com/hydroponic-lighting-ultimate-guide/

Combining Multiple Fixtures for More Uniform Lighting

• Build an additive, large-area emission effect by combining moderate-power fixtures at a sensible height. This often yields a higher min/avg than one ultra-bright point source.
• In greenhouses, pair top lighting with intra-canopy or upward lighting to reduce self-shading and raise within-canopy PPFD. A 2023 greenhouse study documented that combining intra-canopy with top LEDs reduced the coefficient of variation of horizontal PPFD and improved light capture in shaded zones: Consequences of intra-canopy and top LED lighting — Frontiers in Plant Science (2023): https://www.frontiersin.org/journals/plant-science/articles/10.3389/fpls.2023.1012529/full

Greenhouse note: Diffusive films/glazing act like a giant softbox, redistributing ray angles to reach deeper leaves. For implementation in commercial houses, see also your glazing supplier’s diffusion specs and validate with PPFD mapping over representative weather windows.

FAQ

Do grow lights work for plant growth?

Yes. High-quality LED fixtures supply photosynthetically active photons that drive photosynthesis. What matters is dose (DLI), distribution (uniform PPFD), and environment (temperature, CO₂, VPD). Extension resources provide definitions and practical guidance, e.g., Missouri Extension’s grow light overview: Understanding Grow Lights — Missouri Extension: https://extension.missouri.edu/sites/default/files/legacy_media/wysiwyg/Extensiondata/Pub/pdf/agguides/hort/g06987.pdf

What does PPFD stand for in plant lighting?

PPFD means Photosynthetic Photon Flux Density, measured in µmol/m²/s. It’s the number of photosynthetically active photons reaching a surface each second. Growers use it to set fixture height/spacing and confirm targets with a meter. See Apogee’s DLI and PPFD resources: Daily Light Integral Measurement — Apogee Instruments: https://www.apogeeinstruments.com/daily-light-integral-measurement/

What is the difference between PAR vs PPFD?

PAR defines the 400–700 nm band relevant to photosynthesis. PPFD measures the photon flux density within that band at a specific point on your canopy. In short: PAR is the range; PPFD is the on-plant intensity.

How do growers measure PPFD using a PPFD meter for LED grow lights?

Use a quantum sensor level with the canopy. Map on a grid (e.g., 1-ft spacing in a 5 × 5 ft area), then compute average PPFD and min/avg uniformity. Adjust mounting height, spacing, and power; re-map until targets are hit. How-to reference: Determining Grow Light Position Using a PAR Meter — Apogee Instruments: https://www.apogeeinstruments.com/blog/determining-grow-light-position-using-a-par-meter/

What is the recommended distance for LED grow light installation?

Model-dependent. Many bar arrays start near 12–18 inches for tents/benches; in large rooms, hang higher to promote overlap and even PPFD. Always confirm with PPFD mapping. Educational references: MIGRO mounting-height guidance and AC Infinity placement notes listed above.

How much area can thousand watt grow lights cover?

Typically 4 × 4 to 6 × 6 ft for flowering and 5 × 5 to 7 × 7 ft for veg, depending on design and height. Validate using in-situ PPFD maps and your targets. See the AC Infinity and Spider Farmer 1000 W-class pages cited earlier for examples.

Do high PPFD grow lights always increase yield?

Not by themselves. If distribution is poor, hotspots compete with shadows and canopy-level photosynthesis suffers. Uniform PPFD plus appropriate DLI usually beats a single peak number.

Why is canopy penetration important for indoor farming?

Dense canopies self-shade. Delivering photons from larger emitting areas and multiple angles raises PPFD deeper into the canopy, improving whole-plant photosynthesis and aligning maturation across the area.

Conclusion: Better Light Distribution Leads to Higher Yield

A single high ppfd grow lights strategy often hits a ceiling because of geometry and shadows. Large-area emission—wide emitting surfaces, thoughtful mounting height, and overlapping footprints—pushes more of your canopy into the productive zone. Pair that with clear stage targets (best ppfd for veg, best ppfd for flowering), verify with a PPFD meter, and keep iterating. That’s how you break the shadows and turn watts into consistent, saleable biomass—across tiers, rooms, and greenhouse bays.
