Key Feature
- Uplight Switch Eliminates “Cave Effect”.
- UL cUL DLC listed.
- High lumen output,150LPW.
- AC100-277V, 120-347V, 200-480 Vavailable.
- CCT & Wattage selectable.
- Motion sensor control available (Optional).
- 5 years warranty.

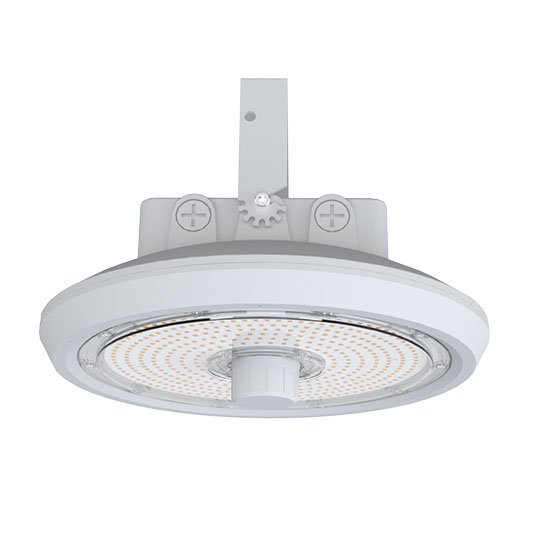

LED PARKING GARAGE LIGHT
FY Parking Garage Lights are available with Power and Color Select capability, allowing field-adjustable changes in wattage and color temperature. Power and Color Select models feature three power outputs and three color temperatures.
To provide additional energy savings and controllability, FY Parking Garage Lights are powered by 0-10V dimming drivers and ship with an integrated twist-lock receptacle for dusk-to-dawn photocells. Contractor-friendly motion sensors can be easily field-installed with no wiring.
Product Certification
This model is fully certified to meet strict safety and performance standards for hazardous locations, ensuring reliable operation in demanding industrial environments.
DLC Certified — Meets high efficiency and performance standards for commercial lighting rebates.
Ensures the product meets strict safety and quality standards set by UL.
Fully protected against dust and powerful water jets for harsh environments.
Complies with European safety, health, and environmental protection standards.
Product Feature
Every detail of the CNP Series is engineered to support long-term, stable performance in demanding applications. Its core features highlight the durability, efficiency, and safety that professionals depend on.
Our parking garage lights are certified with DLC, UL, cUL, CE, and RoHS.
Delivers powerful illumination with reduced energy consumption, ideal for industrial and offshore applications.
IP65-rated for strong protection against dust and water jets.
Supports multi-level wattage and color temperature adjustment.
Supports multiple installations— Arm, Arm Adjustable, Slip Fitter, U-shaped Bracket
Uplight as a standard design feature, which eliminates the “cave effect” often caused by traditional parking garage light
3 CCT & 3 Wattage Adjustable Shoebox Light
This LED Parking Garage Lights uses a simple DIP switch to select three color temperatures and three wattage levels, giving you easy on-site adjustment for different outdoor lighting needs.
180° Adjustable LED Parking Garage Light with U-Bracket
Our LED parking garage light comes with a durable U-shaped mounting bracket that allows a full 180° adjustment. You can easily aim the light upward, downward, or sideways to fit different garage layouts. It delivers bright, uniform illumination with flexible installation and precise lighting control.

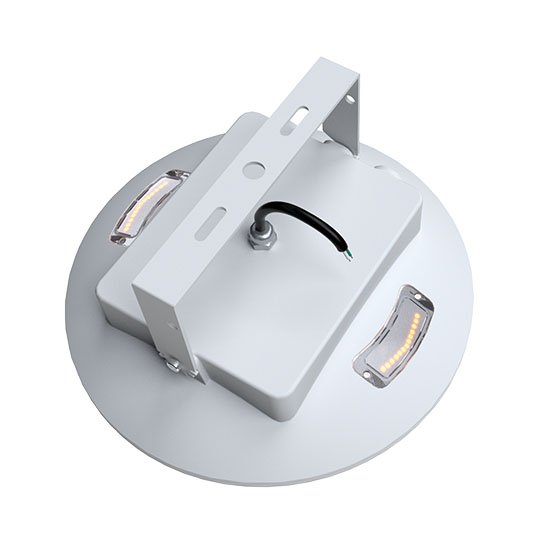

Uplight Eliminates “Cave Effect
Our garage light features an upward Uplight design that brightens the ceiling and eliminates the dark ‘cave effect.
LED Parking Garage Light for Every Application
Versatile Mounting Options for LED Parking Garage Light
Offers flexible angle adjustment to direct light exactly where you need it
Secure low-profile installation that keeps the fixture tight to the ceiling
Ideal for higher ceilings, providing a lowered mounting position for better lighting coverage
Product Specification
- Specification Sheet
| Model | CNP Series |
|---|---|
| Power60 | 40W/60W /80W /100W / 120W |
| Warranty | 5 Year |
| Lumens | 6000-18000 lm |
| Efficacy | Up to 150 lm/W |
| Rating | IP 65 |
| Certification | DLC, UL , cUL, CE, RoHS |
| Operating Temp | -13°F – +49°F (-25°C – +45°C) |
| Voltage | AC120-277V/AC120-347V/AC200-480V, 50/60HZ |
| CRI | ＞70Ra |
| Rated Life | >50.000 hours@L70 |
| Beam Angle | Type II, V |
Industrial Lighting
Features quick clip-on lens replacement and easy DIP-switch adjustable wattage and color temperature for fast customization on site.
A smarter Tri-Proof High Bay — waterproof, impact-resistant, with emergency backup and APP group control for true intelligent lighting.
Smart Tri-Proof High Bay with Emergency Backup & APP Group Control — one light, total command.
Fully-sealed LED High Bay light for food processing — cleaner, safer, and contamination-free
Delivering Reliable Lighting for the Most Demanding Environments
At FY Lighting, every fixture is engineered for long-term performance and safety. From explosion-proof lighting for hazardous zones to industrial high-bays and advanced horticulture solutions, our products are built with premium components, rigorous testing, and industry-leading certifications.
No matter the environment—oil & gas, factories, warehouses, greenhouses, or vertical farms—you get stable output, durable construction, and a product designed to solve real-world challenges.
17 Years of Manufacturing Excellence You Can Trust
With a 10,000㎡ facility, in-house R&D, strict QC processes, and advanced testing equipment, we ensure consistent quality in every unit. Our lights meet global certification standards including UL, CE, RoHS, ATEX, and more.
We support OEM/ODM, provide fast engineering response, and offer customized lighting solutions that fit your exact application needs—helping you reduce downtime, improve safety, and enhance productivity.
Our products meet global standards such as UL, CE, RoHS, ATEX, IECEx, and IP66/IP67. Each unit undergoes strict testing before shipment.
Yes. We provide flexible customization options including beam angles (25°/60°/90°/110°), adjustable brackets, emergency 90-minute backup, CCT options, and wattage variations.
Absolutely. We offer OEM packaging, label customization, and design support based on your market needs.
Standard models ship within 7–15 days. Customized projects may vary based on requirements. We always aim to meet your deadline.
Every fixture goes through aging tests, waterproof tests, vibration tests, and full QC inspection to guarantee stability and durability.
Yes. Share your application details—area size, height, lux requirements—and our engineering team will prepare a professional lighting solution.
