Uneven growth isn’t just frustrating—it is expensive. If parts of your canopy are thriving while edges and lower tiers lag behind, the hidden culprit is usually uneven light distribution. Shadows from fixtures, racking, greenhouse structures, and plant-to-plant occlusion create PPFD troughs that drag down photosynthesis in specific zones. Here’s the deal: improving uniformity and reducing shadows typically does more for yield and quality than simply cranking up intensity.

Many growers still start with the question, do grow lights work? Yes—when designed and deployed correctly, artificial lighting drives predictable photosynthesis and crop scheduling. A better question for commercial operations is how does a grow light work to deliver even PPFD across your actual canopy. This ultimate guide focuses on distribution, LED coverage, PPFD uniformity, and practical shadow-reduction strategies for vertical farms and traditional greenhouses.

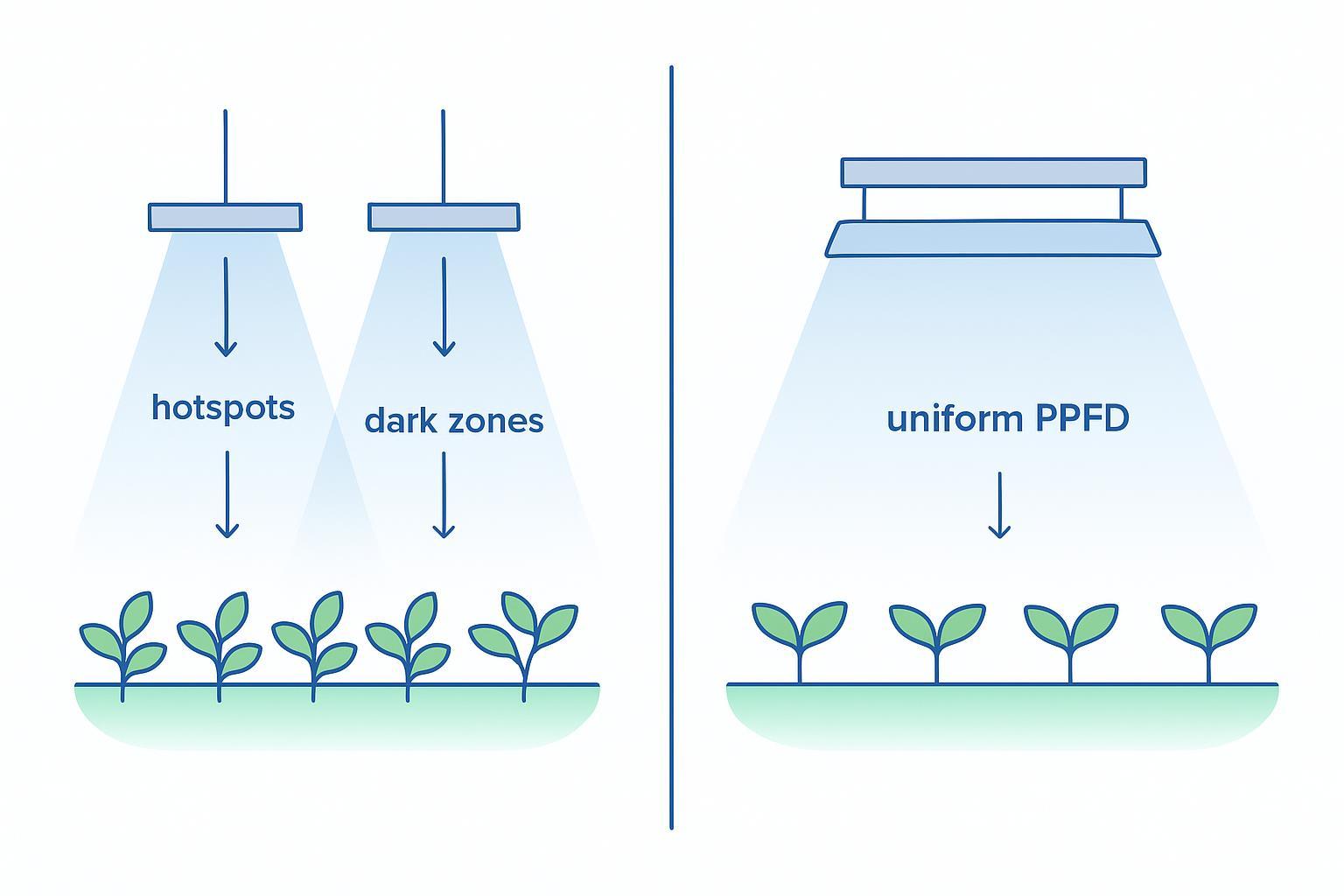

The Hidden Problem in Indoor Farming: Uneven Light Distribution

Uneven PPFD is a silent yield killer. Averages conceal extremes: a “good” mean can hide hotspots that risk photoinhibition and dark zones that starve leaves of photons. The result is variable biomass, inconsistent quality, and erratic harvests.

Why Plants Don’t Grow Evenly Under Poor Light Coverage

Plants respond to the light they actually intercept. Narrow-beam fixtures or sparse spacing create bright islands with steep falloff. Tall crops self-shade; vertical racks cast cross-tier shadows. Over time, plants in brighter pockets outcompete neighbors, compounding canopy unevenness. Edge rows and corners often suffer the most because they miss overlapping footprints from adjacent fixtures.

How Shadows Reduce Photosynthesis Efficiency

Shadows depress local PPFD below what the crop needs to reach its daily light integral (DLI). Instead of lifting the whole canopy, extra watts mainly elevate peaks. That increases variation without fixing the darkest points. Uniform PPFD, by contrast, lets you hit DLI targets precisely without waste.

According to the Illuminating Engineering Society’s discussion of horticultural uniformity, distribution quality—not just peak intensity—determines how consistently a canopy receives usable light (see the IES overview on horticultural uniformity, 2023–2024). Read the context in the IES “Lighting Uniformity in Horticulture” overview.

The Relationship Between Canopy Light and Crop Yield

Think of photosynthesis like filling a reservoir. You only achieve consistent yield when almost every square foot accumulates enough photons each day. Practical uniformity targets many commercial growers use are:

• Min/Avg uniformity ratio ≥ 0.75–0.80
• Coefficient of variation (CV%) ≤ 15–20%

These are practice-based thresholds that correlate with more predictable yield and quality across bays and benches. They’re not legal standards, but they align with professional guidance that emphasizes distribution over peaks.

Do Grow Lights Work? Understanding the Basics of Artificial Lighting

Commercial growers don’t just need photons—they need controllable, uniform photons. Let’s keep the fundamentals short and useful, then pivot to how to make light even.

How Does a Grow Light Work in Controlled Environment Agriculture

Modern fixtures emit photosynthetically active radiation (PAR) as photon flux (PPF). What crops “feel” at the canopy is photosynthetic photon flux density (PPFD), measured in μmol·m⁻²·s⁻¹. Daily light integral (DLI) is the day’s cumulative photons. Using ANSI/ASABE S640 terminology ensures clarity across vendors and labs; the DesignLights Consortium aligns its reporting and testing to these definitions. See the policy context in DLC’s Horticultural Technical Requirements V3.0 (2024).

Why Plant Grow Light LED Technology Dominates Modern Indoor Farming

LEDs deliver high photon efficacy, directional control, and form factors that support wide, even spread. That makes a plant grow light LED the default choice for vertical farms and greenhouse supplementation. Controllability and bar-style layouts enable overlapping footprints that improve uniformity while keeping energy use in check.

Growing With LED Grow Lights vs Traditional Lighting Systems

Compared with legacy HID or HPS, growing with LED grow lights reduces radiant heat and allows closer spacing and tighter height control. The real win is distribution: multi-bar and wide-angle optics create smoother PPFD gradients than point-source lamps, making uniform DLI more attainable. When growing with LED grow lights at commercial scale, treat distribution planning as a primary design variable—not an afterthought.

Why Shadow Reduction Matters More Than Maximum Light Intensity

You can’t fix dark zones with more peak intensity. Pushing the center from 900 to 1,200 μmol·m⁻²·s⁻¹ won’t lift 300 μmol edges enough to meet DLI targets, and it may stress the center.

The Limitations of Chasing the Highest PPFD Grow Light

Buying the “highest ppfd grow light” often concentrates power in the middle of the footprint. Without wide optics, proper spacing, or supplemental fills, hotspots grow hotter while troughs remain troughs. You pay for watts that don’t become yield.

Why Uniform PPFD Distribution Improves Crop Yield

Uniformity reduces variability. When Min/Avg ≥ 0.75–0.80 and CV% ≤ 15–20%, most plants see similar photon budgets. That leads to:

• More consistent growth rate and morphology
• Simplified nutrition and irrigation tuning
• Reduced cull rates and tighter harvest windows

How Canopy Penetration Affects Plant Development

For dense or fruiting crops, top lighting alone can leave lower leaves in chronic shade. Intra-canopy strategies distribute photons into the mid and lower canopy where photosynthetic capacity remains underused. Peer-reviewed studies have shown that distributing LEDs across multiple heights improves within-canopy light absorption and yield potential compared with top-only approaches; for example, see the 2023 modeling analysis by Schipper and colleagues and the 2024 commercial tomato results summarized in Schipper et al., 2023 and Ziaei et al., 2024.

Understanding LED Coverage in Indoor Farming

Coverage determines how effectively photons are shared across the canopy. Two fixtures with the same watts can produce very different distributions.

What Determines LED Coverage

• Optics and beam angle determine spread and overlap.
• Diode layout matters: bar-style arrays disperse sources, softening hotspots.
• Mounting height shifts the intensity-to-uniformity trade-off.
• Room reflectance and racking geometry shape edge and corner losses.

To hit design targets, plan LED coverage with spacing, height, and reflectance in mind, then verify using a canopy map.

1000 Watt LED Grow Light Coverage Explained

Published ranges for 1000 W fixtures vary by design. A common theme is roughly 4×4 to 6×6 ft for flowering-intensity targets, with larger footprints at vegetative levels. Always verify with canopy PPFD maps. For example, some manufacturers list 5×5–6×6 ft flowering footprints for 1000 W bar fixtures.

Why Fixture Layout Matters More Than Raw Wattage

The same 1000 W can produce different Min/Avg and CV% depending on spacing, height, and overlap. Layout is where you trade a little peak PPFD for a much tighter distribution—then dial the average back with dimming to hit DLI.

Supplemental Grow Lights: Eliminating Dark Zones in Grow Rooms

When structure, crop density, or seasonality cause spatial DLI deficits, supplemental grow lights close the gaps.

What Are Supplemental Grow Lights

Supplemental grow lights add photons beyond sunlight or top-light baselines to stabilize DLI. In controlled rooms, they fill persistent low-PPFD strips between primary footprints.

How LED Supplemental Grow Lights Improve Greenhouse Lighting

In greenhouses, led supplemental grow lights buffer cloudy periods and winter sun angles while targeting rows shaded by trusses or crop architecture. Intra-canopy bars reduce lower-canopy shading, supporting fruit set and uniform ripening, consistent with the mechanisms described in the 2023–2024 literature on interlighting cited earlier. For growers still asking, do grow lights work in winter greenhouse conditions, the answer is yes—but the win comes from stabilizing the minimum PPFD, not just boosting the peaks.

Using Supplemental Grow Lights to Fill Light Gaps

Map canopy PPFD, mark points below your target, and add slim bars or side lighting where geometry creates shadows. Validate corrections with a follow-up map until Min/Avg rises and CV% drops.

Grow Light Wattage and Coverage: Finding the Right Balance

Watts do not equal usable coverage. The right wattage depends on plant density, spacing, and CO₂ setpoint, all filtered through uniformity.

Grow Light Wattage for Weed Plants and Dense Canopies

For dense flowering canopies, growers often operate at higher PPFD targets. The practical question isn’t only total wattage, but how evenly those watts spread across buds. When considering grow light wattage for weed plants, prefer multi-bar or wide-angle systems and spacing that deliver even PPFD to the perimeter and inner nodes rather than a single blistering hotspot. If you must scale watts, scale distribution first, then watts second.

Matching Light Output With Plant Spacing

As plant spacing tightens, overlap between fixtures must improve. Shorten row spacing or add intermediate bars so the valley between footprints rises. Use dimming to fine-tune average PPFD once distribution is even.

Avoiding Over-Lighting and Energy Waste

Overshooting PPFD where plants can’t use it wastes energy and increases heat load. Confirm DLI with average PPFD and photoperiod math. Save watts by lifting the minimum, not inflating the maximum.

Practical Strategies to Reduce Shadows in Indoor Farms

Below is a field-tested workflow you can apply in vertical farms and greenhouses.

1. Map your canopy at operating height using a 3×3 to 5×5 grid per bay, including edges and corners. Apogee Instruments outlines a practical method for point grids at canopy height; see the Apogee PPFD mapping guidance.

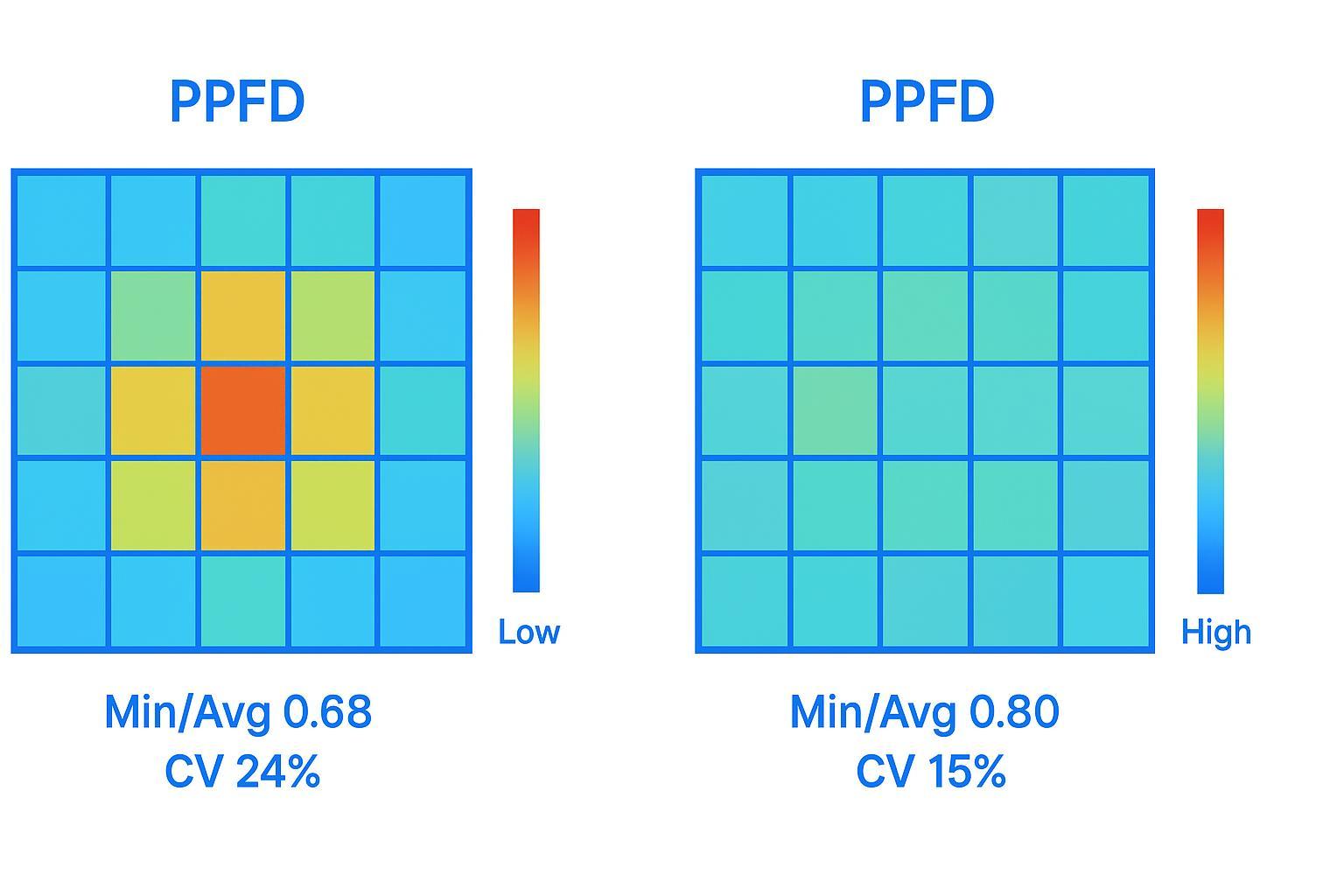

2. Compute Min/Avg and CV% = (standard deviation ÷ mean) × 100. Aim for Min/Avg ≥ 0.75–0.80 and CV% ≤ 15–20% for tighter harvests.
3. Apply one or more of the corrections below and re-map.

Use Wide-Angle LED Fixtures to Improve Light Spread

Wide optics and bar-style arrays broaden footprints, reduce hotspots, and raise edge PPFD. Expect a small drop in peak PPFD that is easy to recover with dimming once the distribution is flat. When planning LED coverage for tight aisles or stacked layers, prioritize beam spread and overlap first.

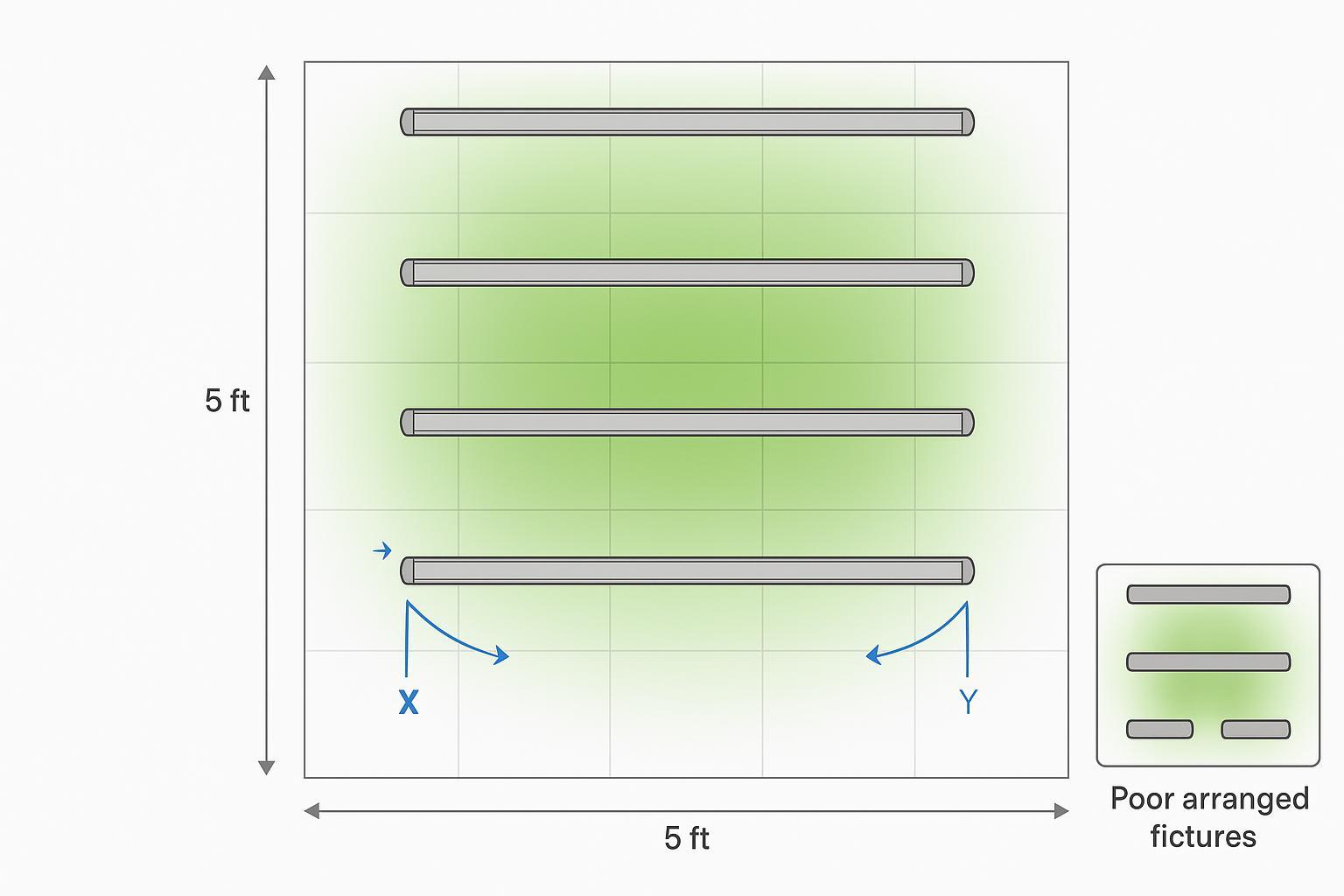

Optimize Fixture Spacing and Lighting Layout

Even X and Y spacing helps footprints overlap precisely. In vertical farms, keep bars aligned with aisles to avoid striping. In greenhouses, align rows and inter-row fills to counter structure shadows.

Combine Top Lighting With Supplemental Grow Lights

Add intra-canopy or side bars to elevate lower-canopy PPFD and stabilize DLI under variable sun. This is especially effective for fruiting crops with complex architecture.

Adjust Mounting Height for Better Light Coverage

Raising fixtures modestly widens footprints and softens gradients; lowering increases intensity but can create hotspots. Tune height together with dimming to maintain average PPFD while lifting the minimum.

Use Reflective Surfaces to Improve Light Utilization

High-reflectance walls, white poly film, and bright bench surfaces bounce stray photons back into the canopy, lifting edge points without additional power.

Example product mention, informational only: Well-engineered bar-style horticultural fixtures are designed for wide, uniform distribution across crop canopies. Systems like FY Lighting commercial grow lights can be configured for even coverage in vertical farms and greenhouses; always validate with a canopy PPFD map before finalizing a layout.

Grow Lights for Flowering Plants: Why Uniform Light Matters

Flowering crops penalize uneven PPFD with inconsistent bud or fruit development. Uniformity is quality control.

Light Distribution and Flower Development

Stable, evenly distributed PPFD supports uniform flower initiation and development. It reduces late-stage surprises like underdeveloped lower sites or uneven ripening.

Preventing Lower-Canopy Shading

Combine top lighting with carefully placed interlighting to deliver usable photons into shaded nodes. This improves carbohydrate supply to developing flowers and fruit, aligning with evidence that multi-height lighting increases within-canopy light absorption.

Simple Grow Light Coverage Guide for Indoor Farms

Typical coverage baselines to validate on-site with PPFD maps:

• 1000 watt LED grow light coverage at flowering levels is often 4×4 to 6×6 ft depending on optics, height, and room reflectance; vegetative footprints can extend larger.
• Bar-style fixtures generally produce wider, more uniform spread than clustered arrays at the same wattage, making growing with LED grow lights simpler to standardize across bays.
• Greenhouse supplemental coverage depends on natural light and structure shading; design to raise the minimum PPFD in the most light-limited rows first. When selecting led supplemental grow lights, favor bars that fit your crop architecture and target the darkest zones.

For quick planning math, many growers reference tools like the Hydrobuilder coverage and PPFD calculators (accessed 2024–2025). Treat calculators as starting points, then confirm with canopy maps.

Standards, Metrics, and DLI Targets at a Glance

• PPFD uniformity practice targets: Min/Avg ≥ 0.75–0.80; CV% ≤ 15–20%.
• DLI formula: DLI (mol·m⁻²·d⁻¹) = average PPFD (μmol·m⁻²·s⁻¹) × photoperiod (seconds per day) ÷ 1,000,000.
• Representative DLI targets by crop and stage:
  • Leafy greens like lettuce: ~12–17 mol·m⁻²·d⁻¹
  • Basil and herbs: ~15–25 mol·m⁻²·d⁻¹
  • Tomato and cucumber: ~20–30 mol·m⁻²·d⁻¹

For detailed extension-backed guidance and examples, see Virginia Tech Extension SPES‑720 on DLI targets and calculations (2025). For a deeper dive into hydroponic layouts and uniform coverage concepts, review FY LIGHTING’s Hydroponic Lighting Ultimate Guide.

Conclusion: Better Lighting Design Leads to Higher Crop Yield

Why Light Uniformity Matters More Than Peak Intensity

Peaks don’t harvest. Plants do. Uniform PPFD lets you meet DLI targets across the whole canopy, reducing variability, easing environmental control, and improving marketable yield. For anyone still asking do grow lights work at scale, the answer becomes clear when distribution is engineered first.

How Shadow Reduction Improves Crop Consistency

Reduce shadows with wide-angle optics, smarter spacing, tuned mounting heights, and targeted supplemental bars. Validate every change with a canopy PPFD map and push your Min/Avg toward 0.80 with CV% ≤ 15–20%. When the darkest points rise, the whole harvest follows.

FAQ

Do grow lights actually work for plant growth?

They do—when they deliver the right photons evenly. Commercial results depend less on the absolute peak and more on uniform PPFD that allows you to hit crop-specific DLI reliably.

How does a grow light work for indoor farming?

Fixtures convert electrical energy into photosynthetically active photons. What matters most on the farm is how those photons distribute across your canopy and through the crop architecture.

What is the coverage of a 1000 watt LED grow light?

Vendors commonly quote 4×4 to 6×6 ft at flowering intensities, larger for veg. Treat these as starting points and confirm with PPFD maps at canopy height.

What is the difference between grow lights and supplemental grow lights?

Primary grow lights provide the baseline PPFD. Supplemental grow lights fill spatial or seasonal gaps to stabilize DLI, especially in greenhouses or between primary footprints. Choosing led supplemental grow lights that match your row spacing and crop height helps minimize shadows.

Do higher PPFD grow lights always produce better yields?

Not if distribution is poor. Chasing the highest ppfd grow light often creates hotspots without fixing dark zones. Prioritize uniformity before turning up intensity.

What grow light wattage is recommended for dense plant canopies?

It depends on target PPFD, CO₂, and spacing. Focus on distribution first—multi-bar, wide-angle fixtures and thoughtful spacing—then size wattage to hit average PPFD and DLI. As a rule of thumb, review grow light wattage for weed plants alongside coverage maps, not in isolation.

Why is light uniformity important in indoor farming?

Uniformity reduces growth variability, streamlines fertigation and climate control, and improves marketable yield by bringing the dimmest parts of the canopy up to target.

Can supplemental grow lights improve greenhouse production?

Yes. LED supplemental grow lights stabilize DLI in low-sun conditions and reduce structural shadows. Interlighting can raise lower-canopy light interception in crops like tomatoes and cucumbers.

How do growers reduce shadows in indoor farms?

Measure, compute Min/Avg and CV%, then adjust optics, spacing, mounting height, reflectance, and add supplemental bars where gaps persist. Re-map to verify improvements.

What type of grow light provides the most uniform coverage?

Bar-style plant grow light LED fixtures with wide optics typically produce smoother, more uniform footprints than point-source designs when installed with proper spacing and height.
